| Product Modle |

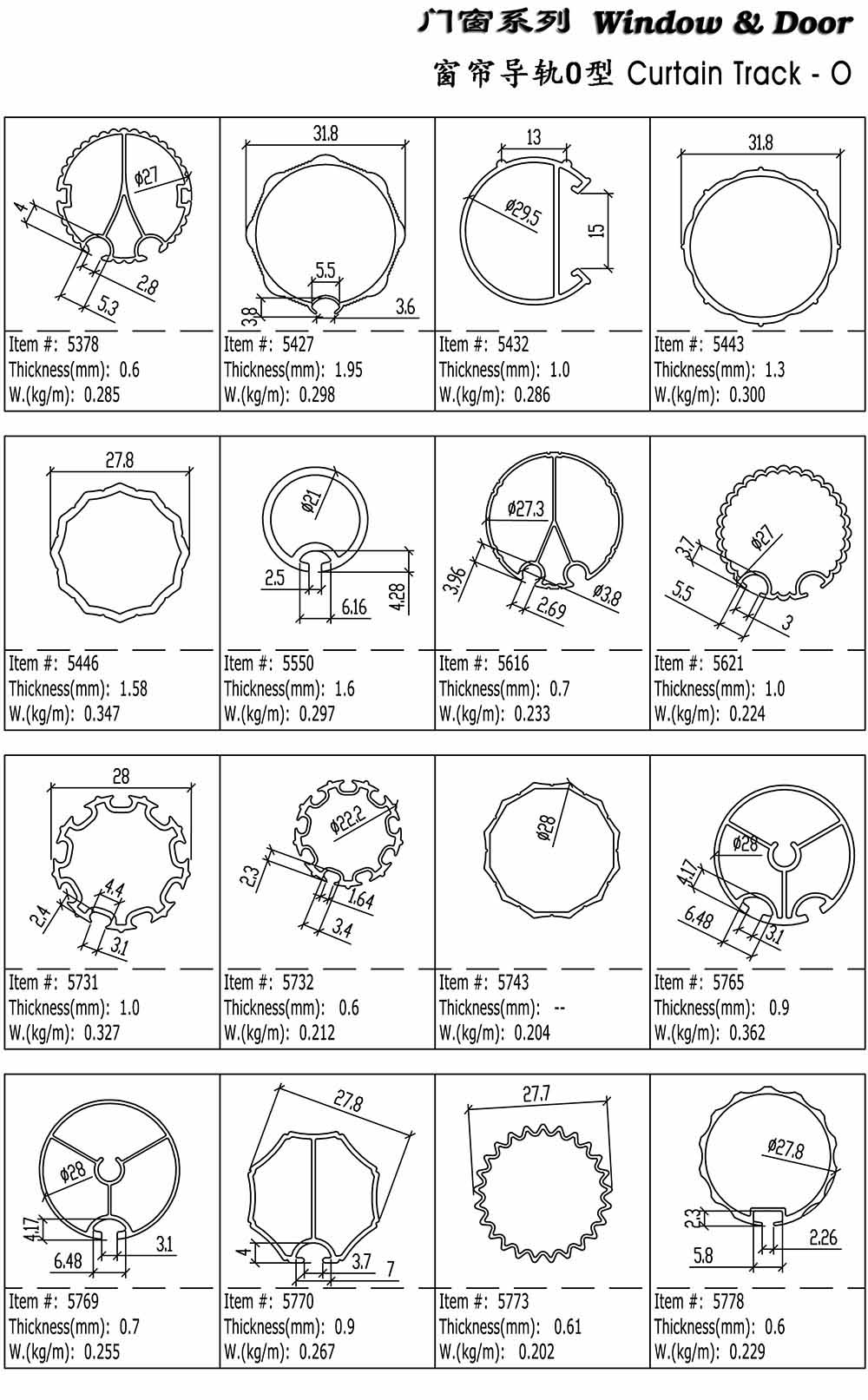

Curtain Track - O 7 |
Brand Name | Yizelian Aluminum |
| Place of Origin | Nanhai China | Product Standard | GBT5237-2008 |
| Alloy | A6063 6061 6463 | ||
| Temper | T4-T6 | Shape | Custom design |
| Application | |||
| Product Line: | Aluminum Curtain Track | |||
| Quality Standard: | GBT5237-2008 |
|||
| Price term: | Lington ingot + process fee or unit price/pc | |||
| Payment term: | TT，30% deposit，balance paid off before delivery. | |||
| Surface treatment: | Anodizing, powder coating, wooden grain, electrophoresis, polish, PVDF | |||
|
Product Parameter: |
Alloy#: | 6063 | 6061 | 6463 |
| Alloy Composition: | Si0.2-0.6,Fe0.35,Cu0.1,Mn0.1,Mg0.45-0.9,Cr0.1,Zn0.1,Ti0.1,others0.05,Al. remaining | Si0.4-0.8,Fe0.7,Cu0.15-0.4,Mn0.15,Mg0.8-1.2,Cr0.04-0.35,Zn0.25,Ti0.15,others0.05,Al. remaining | Si0.2-0.6,Fe0.15,Cu0.2,Mn0.05,Mg0.45-0.9,Zn0.05,others0.05,Al. remaining | |
| Alloy & Temper: | T5；T6 | T4；T6 | T5；T6 | |
| Strength of Extension（N/mm2） | 160；205 | 180；265 | 150；195 | |
| Elongation After Fracture（%） | 8；8 | 16；8 | 8；10 | |
| Hardness(HW) | 8；-- | --- | --- | |
| Profile Length(m) | ≤7米 | |||
| Standard film thickness（μm） | anodizing | 8-12 | ||
| electrophoresis | 15-21 | |||
| Powder coating, wooden grain | 40-120 | |||
| PVDF-2 | 25-35 | |||
| PVDF-3 | 30-45 | |||
| PVDF-4 | 50-70 | |||
| Packing: | separate by paper, PE foam or film protection, bundle up by heat shrink film or kraft paper etc. | |||
| MOQ: | 10tons or 1*20‘ FCL | |||
| Delivery Time: | 15-30days after sample confirmed & deposit got. | |||
| Common Order Flow | 1. Confirm material, size, tolerance, surface treatment, packing etc. all demand details & price. 2. got the mold cost, start mold making & sample production. 3. send sample to client to confirm 4. got deposit & start the mass production 5. got the balance payment and arrange the delivery. |
|||
| Product Certification: | ROHS |
|||
| Company Certification: | ISO9001 |
|||
